Faraday Rotator

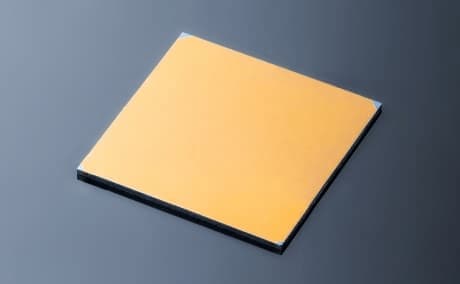

Kohoku Kogyo manufactures Faraday rotators by using the liquid phase epitaxial (LPE) method with lead free flux. Faraday rotator is used to non-reciprocal devices such as optical isolator and optical circulator in optical communication system. They can also be applied to optical sensors in non-optical communication fields.
Features
- Lead-free
- High extinction ratio
- Low loss

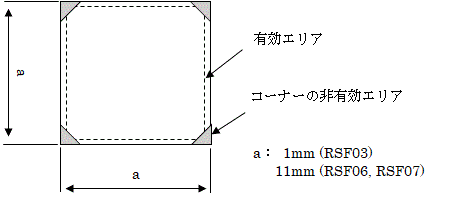

Shape and dimensions
Specifications
| Items | RSF03 | RSF06 | RSF07 |
|---|---|---|---|
| Central wavelength | 1064nm | 1310nm | 1550nm |
| Wavelength coefficient | -0.13 deg./nm | -0.09 deg./nm | -0.07 deg./nm |
| Temperature coefficient | -0.07 deg./℃ | -0.04 deg./℃ | -0.065 deg./℃ |
| Insertion loss | ≦ 1.0 dB | ≦ 0.1 dB | ≦ 0.1 dB |
| Thickness (Typ.) | 600 μm *1 | 320 μm | 380 μm |
| Saturated magnetic field (1-mm square shape) | 1150 Öe | 600 Öe | 800 Öe |
| Magnetic compensation temperature | ＜ -120 ℃ | ＜ -120 ℃ | ＜ -120 ℃ |
*1) With substrate
